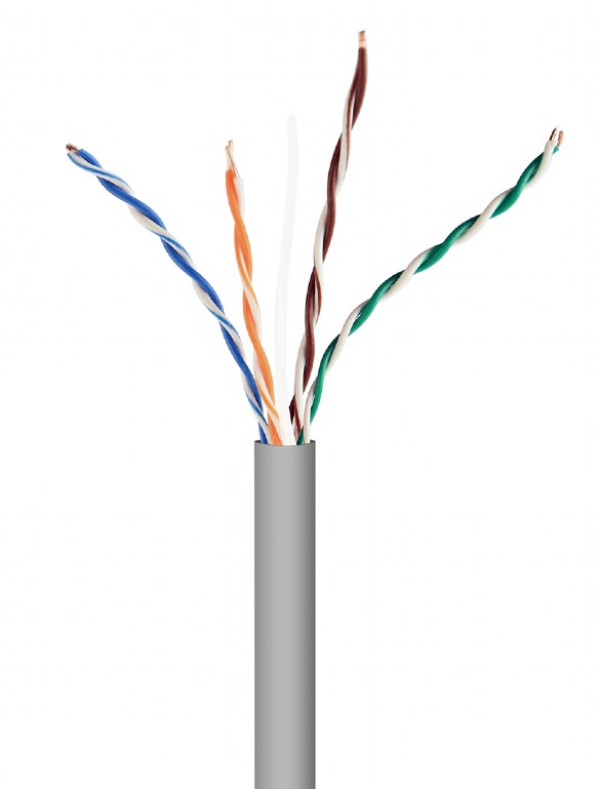

UTP unshielded LAN cable with solid wires
CCA conductors
Category 5E

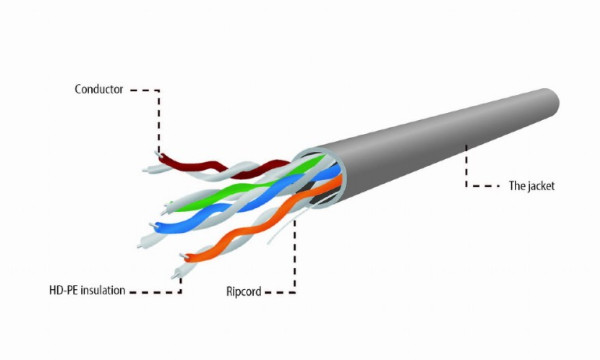

| Unshielded twisted pair (UTP) LAN cable |
| Category 5E |
| Conductor material: AWG24 solid CCA |
| Length: 1000 ft (305 m) |

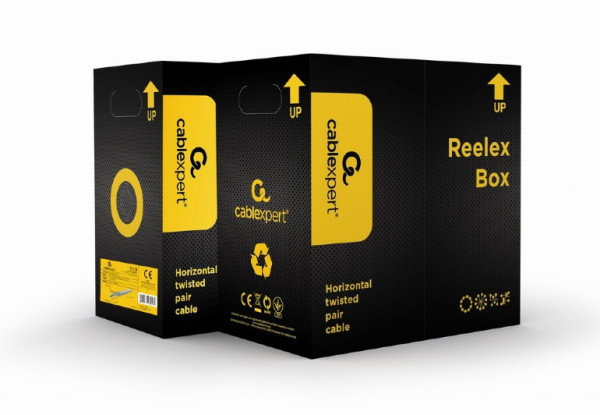

| Package: Reelex box |
| Color: grey |
| Conductor resistance (max): 250 ohm/1000m |
| Insulation resistance (min): 5M ohm/km |
| Pair-to-Ground capacitance: < 330PF / 100m |
| Characteristic impedance: < 100Ohm (+/- 15) |
| Transport and storage temperature: 0 – 60 degrees |
| Operating temperature: -20 – 70 degrees |
| Working distance: <50m |
