| Podnožje | AMD® AM4 |
| Čipset | AMD® B550 |
| Tip procesora | AMD |
| Format ploče | Micro ATX |
| Podržani procesori | – Ugrađeni AMD AM4 podnožje za 3rd Gen AMD Ryzen i 3rd Gen AMD Ryzen sa Radeon grafičkim procesorima |
| Podržana memorija | DDR4 |
| Memorija | – 3rd Gen AMD Ryzen Procesora – 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered memoriju – 3rd Gen AMD Ryzen sa Radeon grafičkim procesorima – 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered memoriju – Dual Channel Memory Architecture – ECC Memory (ECC mode) podrška varira od CPU |
| Integrisana grafička karta | – 1 x D-Sub – 1 x DVI-D – 1 x HDMI 2.1(4K@60HZ) |
| Slotovi za proširenje | – 3rd Gen AMD Ryzen procesori – 1 x PCIe 4.0 x16 (x16 mode) – 3rd Gen AMD Ryzen sa Radeon grafičkim procesorima – 1 x PCIe 3.0 x16 (x16 mode) – AMD B550 Chipset – 2 x PCIe 3.0 x1 |
| Skladište | Maksimalno podržava 2 x M.2 slot(s) i 4 x SATA 6Gb/s porta – 3rd Gen AMD Ryzen procesori: – 1 x M.2_1 podnožje 3, sa M Key, tip 2242/2260/2280/22110(PCIE 4.0 x4 i SATA modes) storage uređaja – 3rd Gen AMD Ryzen sa Radeon grafičkim procesorima: – 1 x M.2_1 podnožje 3, sa M Key, tip 2242/2260/2280/22110(PCIE 3.0 x4 i SATA modes) storage uređaja – AMD B550 Chipset : – 1 x M.2_2 podnožje 3, sa M Key, tip 2242/2260/2280 (PCIE 3.0 x4 i SATA modes) storage uređaja – 4 x SATA 6Gb/s port(s) – Podržava Raid 0, 1, 10 |
| Mrežna karta | – Realtek RTL8111H 1Gb Ethernet – ASUS LANGuard |
| Zvučna karta | Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC – Podržava: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : – LED-illuminated design – Audio Shielding – Dedicated audio PCB layers – Premium Japanese audio capacitors |
| USB | USB portovi sa zadnje strane ( Total 6 ) – 2 x USB 3.2 Gen 2 port(s)(2 x Type-A) – 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) USB portovi sa prednje strane ( Total 6 ) |
| Konektori na zadnjoj strani | – 1 x PS/2 keyboard/mouse combo port(s) – 1 x DVI-D – 1 x D-Sub – 1 x HDMI – 1 x LAN (RJ45) port(s) – 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A) – 4 x USB 3.2 Gen 1 (blue) Type-A – 3 x Audio jack(s) |
| Interni konektori | – 1 x CPU Fan connector(s) – 2 x Chassis Fan connector(s) – 1 x USB 3.2 Gen 1(up to 5Gbps) konektor podržava dodatna 2 USB 3.2 Gen 1 port(s) – 2 x USB 2.0 konektora podržavaju dodatna 4 USB 2.0 port(s) – 1 x M.2 podnožje 3 sa M Key, tip 2242/2260/2280/22110 storage ueđaja (SATA mode & X4 PCIE mode) – 1 x M.2 podnožje 3 sa M Key, tip 2242/2260/2280 storage uređaja (SATA mode & X4 PCIE mode) – 1 x SPI TPM header – 4 x SATA 6Gb/s connector(s) – 1 x S/PDIF out header(s) – 1 x 24-pin EATX Power connector(s) – 1 x 8-pin EATX 12V Power connectors – 1 x Front panel audio connector(s) (AAFP) – 1 x Clear CMOS jumper(s) – 1 x System panel connector – 1 x COM port header – 1 x Speaker connector |
| BIOS | – 256 Mb Flash ROM, UEFI AMI BIOS |

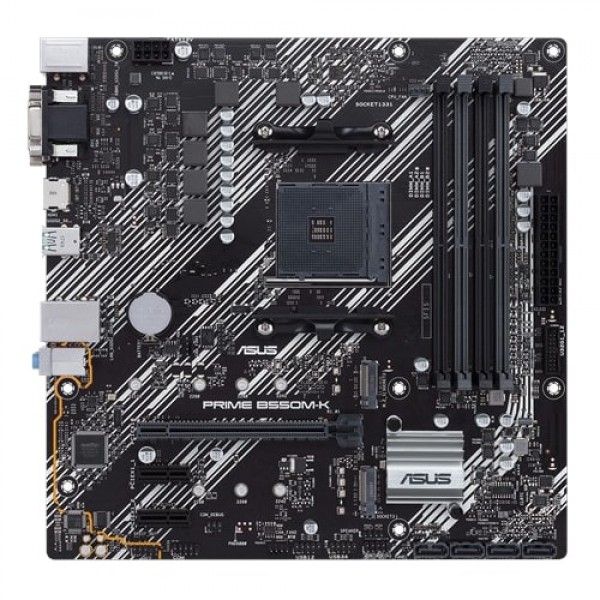

MB AM4 ASUS PRIME B550M-K
13.869,00 рсд
10 na zalihama
